- UV Laser
- Perfect marking quality
- 100,000 Hours
- Long Working Life
- Metal Plate
- light-weight and High Strength
- Intelligent Control
- Full-automation
- Power Consumption≤1KW
- Energy-saving
- Industrial Designs
- independent R&D
Technical Parameter
| Wavelength | 355nm |
|---|---|
| Laser power | 3W/5W/8W |
| Marking Area | 100mm x 100mm |
| Max Marking Speed | ≤10000mm/s |
| Marking Depth | ≤1.0mm |
| Min Character | 0.1mm |
| Min Line Width | 0.01mm |
| Repetition Precision | ±0.001mm |
| Power Supply | 220V 50Hz |
| Power Consumption | ≤1.2KW |
| Overall Weight | 150KG |
| Machine Dimensions | 740mm x 850mm x 1590mm |
| Overall Structure | Metal Plate |

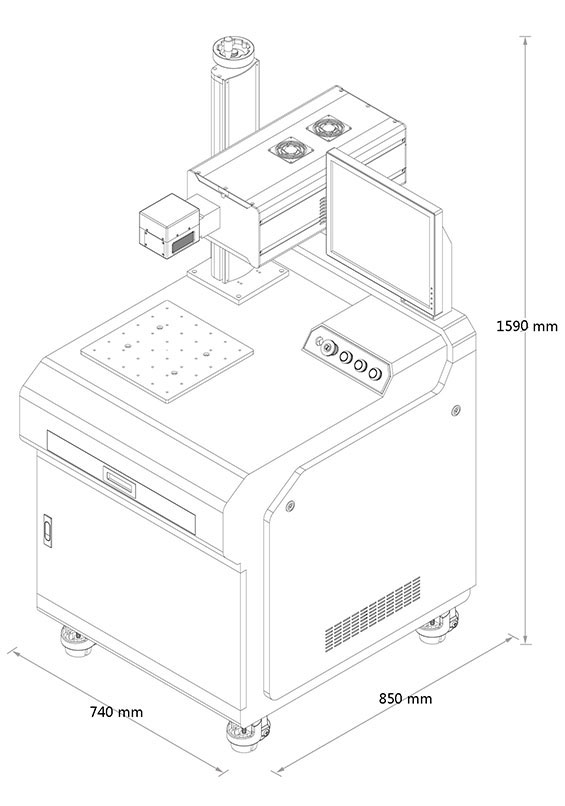

Size
Length：740mm
Width：850mm
Height：1590mm
Equipment Resolution
Supporting Format
Vector format
- AI
- PLT
- DXF
- JPC
- SVG
- NC, G
- BOT
- DST
Bitmap format
- BMP
- JPG
- JPEG
- GIF
- TGA
- PNG
- TIF
- TIFF
Package Contents
Equipment/Laser protective goggles/Lens Cleaning Paper/Testing Black Paper/Dimming Metal Card/Tooling
