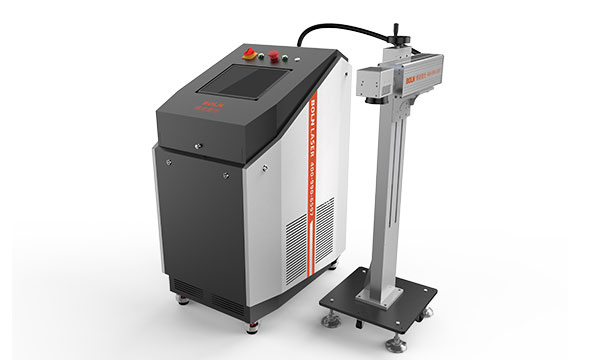

Flying laser marking machine for production line

20W Output Power
Strong Power
100,000 Hours
Long Working Life
100m/min
Maximum line speed
Intelligent Control
Full-automation
Power Consumption≤1KW
Energy-saving
Split structure
Production line marking

Technical Parameter

Line speed 0 ~ 100m/min
Marking Area 100mm X 100mm
Max. Marking Speed 7000mm/s
Power Supply 220V 10A 50Hz
Laser power 20W
Power Consumption <750W
Running Temperature 0-40℃
Running Humidity 5%-75%
Overall Weight 650KG
Machine Dimensions 650mm x 920mm x 1310mm
Overall Structure Metal Plate

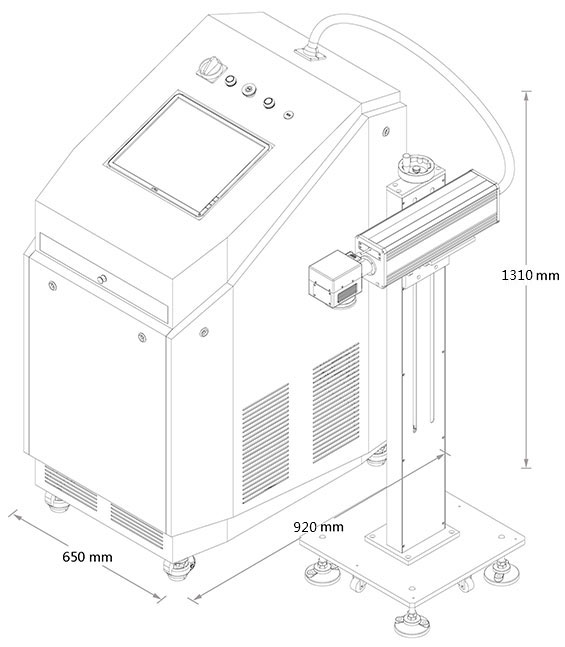

Dimensions

length:650mm
width:920mm
height:1310mm

Equipment Resolution

Supporting Format

Vector format

  • AI
  • PLT
  • DXF
  • JPC
  • SVG
  • NC, G
  • BOT
  • DST

Bitmap format

  • BMP
  • JPG
  • JPEG
  • GIF
  • TGA
  • PNG
  • TIF
  • TIFF

Package Contents

Equipment/Laser protective goggles/Lens Cleaning Paper/Testing Black Paper/Dimming Metal Card/Tooling
