100W Gear laser marking machine

100W Output Power
Strong Power
100,000 Hours
Long Working Life
Power Consumption≤1KW
Energy-saving
Auto-focusing
Precise Positioning
Intelligent Control
Full-automation
Metal Plate
light-weight and High Strength

Technical Parameter

Marking Area 100mm X 100mm
Max. Marking Speed 7000mm/s
Min. Product Diameter 150mm
Max. Product Diameter 520mm
Power Supply 220V 10A 50Hz
Laser power 50W - 100W
Power Consumption < 1000W
Running Temperature 0-40℃
Running Humidity 5%-75%
Overall Weight 800KG
Machine Dimensions 1090mm x 1150mm x 1890mm
Overall Structure Metal Plate

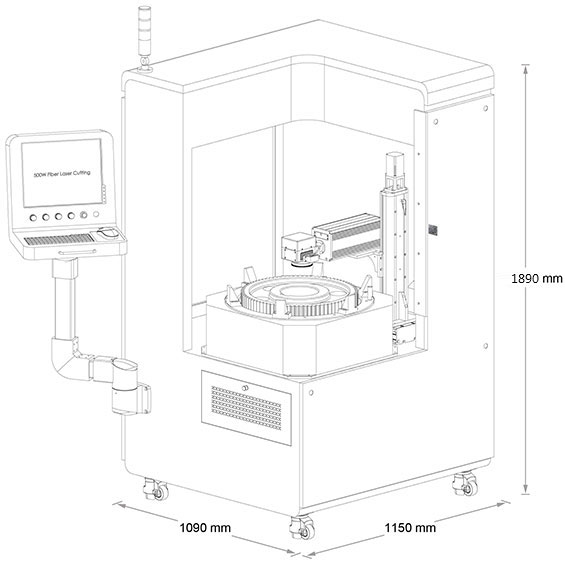

Size

length:1090mm
width:1150mm
height:1890mm

Equipment Resolution

Supporting Format

Vector format

  • AI
  • PLT
  • DXF
  • JPC
  • SVG
  • NC, G
  • BOT
  • DST

Bitmap format

  • BMP
  • JPG
  • JPEG
  • GIF
  • TGA
  • PNG
  • TIF
  • TIFF

Package Contents

Equipment/Laser protective goggles/Lens Cleaning Paper/Testing Black Paper/Dimming Metal Card/Tooling
